Motorcycle specifications Harley-Davidson1746 ROAD GLIDE ULTRA FLTRU 2017 Apologie des contrées

Touring
Photo of Harley-Davidson 1746 ROAD GLIDE ULTRA FLTRU 2017

presentation of the 1746 ROAD GLIDE ULTRA FLTRU 2017

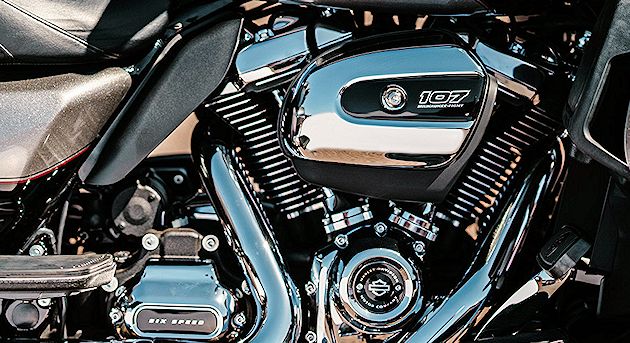

As one of the most imposing vessels in Harley-Davidson's Touring range, the Road Glide Ultra is entitled to a few privileges. The most important is undoubtedly the adoption of the new 107 ci engine block. Christened the Milwaukee Eight, the muscle that now drives this behemoth is on a par with Harley's ambitions. Wattage, torque and modernity. True to tradition, the M8 features two cylinders arranged in a 45° V-shape. The engineers worked hard to give it more than just metal and fins. The cylinder heads house 4 valves per cylinder, as well as two spark plugs to optimize combustion. With 1746 cm3 and part-liquid cooling, a host of improvements and improved breathing, this ninth-generation "big block" propels the Road Glide Ultra with a whole new vigor.

a few figures? Let's take a look at the torque, which is up by almost 1.5 mkg, or 15.5 at 3250 rpm. Compared with the recent Twin Cam High Output 1690 cm3, the difference is obvious. From 0 to 100 km/h, and from 100 to 130, the machine is 11% faster.
A balancer shaft reduces idle vibrations by 75%, while maintaining the pulse and character typical of Harleys. To find out more about the Milwaukee Eight engine, click here ->.
The MoCo also enhances ride comfort with new Showa suspensions. The fork is more efficient and the damping more stable. The rear amortos are no longer of the air-suspension generation. Using emulsion and simplified adjustment, they ensure that a constant preload is maintained.

The allure is enhanced, and the Road Glide continues to surprise. Its distinctive face filters through its audience, giving it an indescribable appeal. In addition to the protection and steering feel of the Electra. Harley worked hard on this model, building on the Rushmore project. The fork head has been profiled to optimize aerodynamic flow. To put it simply, without getting too technical: a dose of comfortable air for the rider and another to cool the engine.

Harley-Davidson 1746 ROAD GLIDE ULTRA FLTRU 2017 - 1Harley-Davidson 1746 ROAD GLIDE ULTRA FLTRU 2017 - 1
Harley-Davidson 1746 ROAD GLIDE ULTRA FLTRU 2017 - 2Harley-Davidson 1746 ROAD GLIDE ULTRA FLTRU 2017 - 2Harley-Davidson 1746 ROAD GLIDE ULTRA FLTRU 2017 - 3Harley-Davidson 1746 ROAD GLIDE ULTRA FLTRU 2017 - 3Harley-Davidson 1746 ROAD GLIDE ULTRA FLTRU 2017 - 4Harley-Davidson 1746 ROAD GLIDE ULTRA FLTRU 2017 - 4Harley-Davidson 1746 ROAD GLIDE ULTRA FLTRU 2017 - 5Harley-Davidson 1746 ROAD GLIDE ULTRA FLTRU 2017 - 5Harley-Davidson 1746 ROAD GLIDE ULTRA FLTRU 2017 - 6Harley-Davidson 1746 ROAD GLIDE ULTRA FLTRU 2017 - 6

Harley-Davidson 1746 ROAD GLIDE ULTRA FLTRU 2017

what's in the Rushmore project already? Testimonials, opinions and ideas from thousands of Harley users, followed by concrete applications. A number of models, including the 1745 Road Glide Ultra, benefit from these. These include Reflex brakes, a 49 mm foam fork, lightweight Impeller aluminum wheels, improved dashboard graphics and controls, and cruise control. On the entertainment front, the Boom Box 6.5 GT system crushes the competition. A large 16.5 cm touchscreen controls audio, GPS, USB, MP3 - and sends it all to you either via Bluetooth, or through 100 w of power in 4 13.34 cm speakers.

comfort plays an important role on this bike. The rider benefits from a revised seat and higher handlebars than on the Road Glide Special. Far from being forgotten, the passenger benefits from a backrest, armrests and a seat that's 25 mm longer and wider than on the FLTRXS. The Tour-Pak offers 4% more capacity and opens and closes via a single OneTouch lock, as do the suitcases and fuel filler flap.
The machine is imposing, and requires a certain financial commitment. After all, as Harley says:"They cross two borders before lunch..."

M.B - Manufacturer's photos

Key facts Harley-Davidson 1746 ROAD GLIDE ULTRA FLTRU (2017) : What you need to know before you buy

Highlights

  • Imposing traveler
  • Equipment
  • Majestueux moteur Milwaukee Eight

Weak points

  • Dimensions
  • Poids
  • Price

Prices

Basic version
flag FranceFrance
28,790€

Bikers' reviews

of 0 review

Model sold in 2017 2018

Replace 1690 ROAD GLIDE ULTRA FLTRU 2016

Photo of {name} {year}
1690 ROAD GLIDE ULTRA FLTRU 2016

Performance

Specifications Harley-Davidson 1746 ROAD GLIDE ULTRA FLTRU 2017

Chassis
Frame : double tubular steel cradle
Fuel capacity : 22.70 liters (6 US gallons)
Seat height : 735 mm (28.94 in)
Length : 2,595 mm (102.17 in)
Width : 915 mm (36.02 in)
Wheelbase : 1,625 mm (63.98 in)
Dry weight : 408 kg (899 lb)
Weight when fully loaded : 425 kg (937 lb)
Front axle
Telehydraulic fork Ø 49 mm, Wheel travel : 117 mm (4.61 in)
Braking 2 discs Ø 300 mm (11.81 in), 4-piston caliper
Front tire : 130 / 80 - 17 → Order this type of tire
Pressure : 2.48 bar
Transmission
6 stage gearbox
Secondary belt drive
Rear axle
2 lateral shock absorbers, Wheel travel : 76 mm (2.99 in)
Braking 1 disc Ø 300 mm (11.81 in), 4-piston caliper
Rear tire : 180 / 65 - 16 → Order this type of tire
Pressure : 2.76 bar
Motor
two-cylinder 45° V-shaped , 4 strokes
Injection
Cooling system : combined air/water
tumbled
4 valves per cylinder
1,746 cc
91 ch (89.70 hp) to 5,450 rpm
15.40 mkg to 3,250 rpm
Power-to-weight ratio : 4.55 kg/ch
Weight / torque ratio : 26.49 kg/mkg
Compression : 10 : 1
Standard equipment
Brake assist : ABS
Bluetooth
Practical information
Take care of your motorcycle! Find all the parts and maintenance products you need to keep your bike in top condition.
Motorcyle equipment adapted for all members of the family and security elements.

Gallery

Compare the 1746 ROAD GLIDE ULTRA FLTRU to its competitors

Fuel consumption

Harley-Davidson 1746 ROAD GLIDE ULTRA FLTRU 2017 : 5.50 liters/100km (0.43 mpg)
Indian 1811 ROADMASTER 2016 Undisclosed

Range

Harley-Davidson 1746 ROAD GLIDE ULTRA FLTRU 2017 : 413 km (257 miles)
Indian 1811 ROADMASTER 2016 Undisclosed

Torque

Harley-Davidson 1746 ROAD GLIDE ULTRA FLTRU 2017 : 15.4 mkg
Indian 1811 ROADMASTER 2016 : 14.1 mkg

Power

Harley-Davidson 1746 ROAD GLIDE ULTRA FLTRU 2017 : 91 ch (89.70 hp)
Indian 1811 ROADMASTER 2016 : 74 ch (73 hp)

Power-to-Weight ratio

Harley-Davidson 1746 ROAD GLIDE ULTRA FLTRU 2017 : 4.55 kg/ch
Indian 1811 ROADMASTER 2016 : 5.56 kg/ch

Torque-to-Weight ratio

Harley-Davidson 1746 ROAD GLIDE ULTRA FLTRU 2017 : 26.49 kg/mkg
Indian 1811 ROADMASTER 2016 : 28.79 kg/mkg

Speed

Harley-Davidson 1746 ROAD GLIDE ULTRA FLTRU 2017 : approximately 170 km/h (105.60 mph)
Indian 1811 ROADMASTER 2016 : approximately 180 km/h (111.80 mph)

Bikers' reviews Leave a review

Leave your review about the Harley-Davidson 1746 ROAD GLIDE ULTRA FLTRU 2017
Follow the news

Fill up at MotoplaneteBe notified by email when a new entry is published in this category.

Your personal data is processed by the company that manages the Motoplanete site on the basis of your consent and is used to manage your alerts. To find out more and exercise your rights, please consult our personal data policy.

FAQ Your frequently asked questions about the 1746 ROAD GLIDE ULTRA FLTRU 2017

What is the power of the 1746 ROAD GLIDE ULTRA FLTRU 2017?
The 1746 ROAD GLIDE ULTRA FLTRU 2017 develops a power of 91 ch (89.70 hp)
What is the torque of the 1746 ROAD GLIDE ULTRA FLTRU 2017?
The maximum torque of the 1746 ROAD GLIDE ULTRA FLTRU 2017 is 15.40 mkg to 3,250 rpm.
What is the maximum speed of the 1746 ROAD GLIDE ULTRA FLTRU 2017?
The 1746 ROAD GLIDE ULTRA FLTRU 2017 is capable of reaching a top speed of approximately 170 km/h (105.60 mph) on the track.
What is the weight of the 1746 ROAD GLIDE ULTRA FLTRU 2017?
The 1746 ROAD GLIDE ULTRA FLTRU 2017 has a a dry weight of 408 kg (899 lb), a weight when fully loaded of 425 kg (937 lb).
What is the fuel consumption of the 1746 ROAD GLIDE ULTRA FLTRU 2017?
Average fuel consumption is estimated at 5.50 l/100km (0.43 mpg) according to the WMTC cycle.
QWhat is the seat height of the 1746 ROAD GLIDE ULTRA FLTRU 2017?
To ensure good accessibility, the 1746 ROAD GLIDE ULTRA FLTRU 2017 offers a minimum seat height of 735 mm (28.94 in).
What is the price of the 1746 ROAD GLIDE ULTRA FLTRU 2017?
The price of the 1746 ROAD GLIDE ULTRA FLTRU 2017 is 28,790€ in France
