Motorcycle specifications Harley-DavidsonCVO 1870 LIMITED FLHTKSE 2017 Touring's one-upmanship... and more

Touring
Photo of Harley-Davidson CVO 1870 LIMITED FLHTKSE 2017

presentation of the CVO 1870 LIMITED FLHTKSE 2017

never before has a Harley Touring delivered so much. Luxury, the open road, CVO excellence, and a new dimension of panache with the addition of a promising new engine.

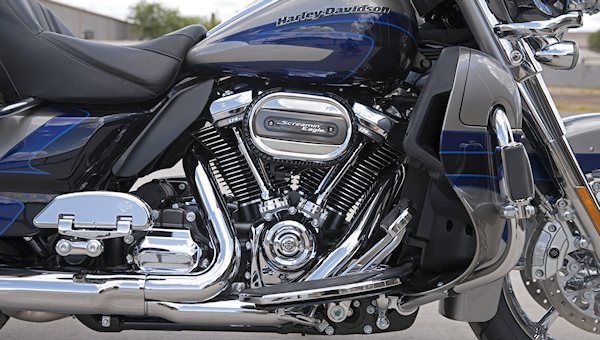

Enormous, unprecedented, the Milwaukee Eight is in all its glory in this CVO 1870 Limited. This is the biggest ever version of this powerplant. Named 114, it refers to its cubic capacity in American measurements. Here, its cubic capacity is identified in cm3, and rises to 1868. We're talking over 100 horsepower right off the crankshaft, and torque-wise, enthusiasts are in for a treat. The M8 114 ci spits out 16.8 mkg. An ox! That's 1 mkg more than the previous 110 ci. Performance-wise, it claims to be 8% faster from 0 to 100 km/h, and 12% faster from 100 to 130 km/h.

a new block with 4 valves per cylinder, liquid-cooled cylinder heads, greatly increased intake and exhaust flow, and a new clutch.assist & Slip clutch, which reduces lever effort by 7%, and a balancer that cancels out 75% of vibrations at idle. Rest assured, Harley's character and "good vibes" are preserved. To find out more about the Milwaukee Eight engine, click here ->

another notable change is the suspension. Harley bought an SDBV fork from Showa for greater performance and consistency. The rear shock absorbers abandon air technology for a tried-and-tested emulsion. Preload is extended from 15% to 30% with a single hydraulic adjustment knob. No more need for tools and pumps to adjust rear damping, which is also claimed to be very stable over time.

Harley-Davidson CVO 1870 LIMITED FLHTKSE 2017 - 1Harley-Davidson CVO 1870 LIMITED FLHTKSE 2017 - 1
Harley-Davidson CVO 1870 LIMITED FLHTKSE 2017 - 2Harley-Davidson CVO 1870 LIMITED FLHTKSE 2017 - 2Harley-Davidson CVO 1870 LIMITED FLHTKSE 2017 - 3Harley-Davidson CVO 1870 LIMITED FLHTKSE 2017 - 3Harley-Davidson CVO 1870 LIMITED FLHTKSE 2017 - 4Harley-Davidson CVO 1870 LIMITED FLHTKSE 2017 - 4Harley-Davidson CVO 1870 LIMITED FLHTKSE 2017 - 5Harley-Davidson CVO 1870 LIMITED FLHTKSE 2017 - 5Harley-Davidson CVO 1870 LIMITED FLHTKSE 2017 - 6Harley-Davidson CVO 1870 LIMITED FLHTKSE 2017 - 6

this is no longer a ship or a queen, but an empress of the road. Imposing in size, quality, equipment, price and vocation, the CVO 1870 Limited combines many of the superlatives of its microcosm.

Harley-Davidson CVO 1870 LIMITED FLHTKSE 2017

the Electra 1745 Limited already provided plenty to make us salivate, especially since the evolution of the Rushmore project. So, logically, it provides the CVO with a number of fine features, such as the revised Batwing fairing with central air intake, the BOOM 6.5 GT multimedia station with GPS, touchscreen and USB playback, a good-looking passenger seat, Reflex ABS, Daymaker headlights, improved panniers and Pak touring, cruise control, heated grips, One-Touch locking of various elements... Don't waste any more.

that's not enough for you... I agree. Given the stifling price tag, you're entitled to expect more. Like the high-quality paintwork with hand-painted Thunderblade motifs; or the heated seat with dual controls; or the polished chrome Contrast Chrome Slicer wheels, the LED lights, a selection of beautiful parts from Harley's catalog - the Airflow collection includesthe Airflow collection includes heated grips combining black rubber and shiny chrome, a brake pedal and gearshift, rider and passenger footrests with complementary brake and gear levers - and the BOOM multimedia center, which offers a number of exclusive features, only available on this CVO Limited. The GPS offers 3D landmarks, 3D drawings, and three software updates over five years - the amplifier outputs 75 watts instead of 25 per channel, and 16 GB of storage are available in the Jukebox.

more equipment was added in 2016, with the appearance of tire pressure monitoring, which can be checked at any time on the dashboard. A transponder key has replaced the two remote controls, and the turn signals are LED. The driver's seat has been revised in 2017 for greater comfort.

totally unreasonable, absolutely intoxicating, equipped with the luxury worthy of Swiss watches and MoCo's standard-bearer, the CVO 1870 Limited and its majestic Milwaukee Eight 114 take the crew far beyond the journey.

M.B - Manufacturer's photos

Key facts Harley-Davidson CVO 1870 LIMITED FLHTKSE (2017) : What you need to know before you buy

Highlights

  • Le twin Screamin avec 1868 cm3
  • Luxe
  • Vibrations inimitables
  • Le plus du top de HD

Weak points

  • Poids
  • Recipe

Prices

Basic version
flag FranceFrance
41,750€

Bikers' reviews

of 1 reviews

Model sold in 2017

Replace CVO 1800 LIMITED FLHTKSE 2016

Photo of {name} {year}
CVO 1800 LIMITED FLHTKSE 2016

Performance

Specifications Harley-Davidson CVO 1870 LIMITED FLHTKSE 2017

Chassis
Frame : Double steel cradle
Fuel capacity : 22.70 liters (6 US gallons)
Seat height : 760 mm (29.92 in)
Length : 2,600 mm (102.36 in)
Width : 1,090 mm (42.91 in)
Min height : 1,440 mm (56.69 in)
Wheelbase : 1,625 mm (63.98 in)
Dry weight : 414 kg (913 lb)
Weight when fully loaded : 431 kg (950 lb)
Front axle
Telescopic fork Ø 43 mm, Wheel travel : 117 mm (4.61 in)
Braking 2 discs Ø 300 mm (11.81 in), 4-piston caliper
Front tire : 130 / 80 - 17 → Order this type of tire
Pressure : 2.48 bar
Transmission
6 stage gearbox
Secondary belt drive
Rear axle
2 lateral shock absorbers, Wheel travel : 76 mm (2.99 in)
Braking 1 disc Ø 300 mm (11.81 in), 4-piston caliper
Rear tire : 180 / 65 - 16 → Order this type of tire
Pressure : 2.76 bar
Motor
two-cylinder 45° V-shaped , 4 strokes
Injection
Cooling system : combined air/water
tumbled
4 valves per cylinder
1,868 cc
102 ch (100.60 hp) to 5,250 rpm
16.80 mkg to 3,250 rpm
Power-to-weight ratio : 4.12 kg/ch
Weight / torque ratio : 24.64 kg/mkg
Compression : 10.5 : 1
Standard equipment
Brake assist : ABS as standard
Practical information
Take care of your motorcycle! Find all the parts and maintenance products you need to keep your bike in top condition.
Motorcyle equipment adapted for all members of the family and security elements.

Gallery

Models

Compare the CVO 1870 LIMITED FLHTKSE to its competitors

Fuel consumption

Harley-Davidson CVO 1870 LIMITED FLHTKSE 2017 : 5.50 liters/100km (0.43 mpg)
Indian 1811 ROADMASTER 2017 Undisclosed

Range

Harley-Davidson CVO 1870 LIMITED FLHTKSE 2017 : 413 km (257 miles)
Indian 1811 ROADMASTER 2017 Undisclosed

Torque

Harley-Davidson CVO 1870 LIMITED FLHTKSE 2017 : 16.8 mkg
Indian 1811 ROADMASTER 2017 : 14.1 mkg

Power

Harley-Davidson CVO 1870 LIMITED FLHTKSE 2017 : 102 ch (100.60 hp)
Indian 1811 ROADMASTER 2017 : 74 ch (73 hp)

Power-to-Weight ratio

Harley-Davidson CVO 1870 LIMITED FLHTKSE 2017 : 4.12 kg/ch
Indian 1811 ROADMASTER 2017 : 5.56 kg/ch

Torque-to-Weight ratio

Harley-Davidson CVO 1870 LIMITED FLHTKSE 2017 : 24.64 kg/mkg
Indian 1811 ROADMASTER 2017 : 28.79 kg/mkg

Speed

Harley-Davidson CVO 1870 LIMITED FLHTKSE 2017 : approximately 170 km/h (105.60 mph)
Indian 1811 ROADMASTER 2017 : approximately 180 km/h (111.80 mph)

Bikers' reviews Leave a review - 1 review

une autre planete
French Model 2017
I drove it to the U.S. It's too much Rating : 5/5
Leave your review about the Harley-Davidson CVO 1870 LIMITED FLHTKSE 2017
Follow the news

Fill up at MotoplaneteBe notified by email when a new entry is published in this category.

Your personal data is processed by the company that manages the Motoplanete site on the basis of your consent and is used to manage your alerts. To find out more and exercise your rights, please consult our personal data policy.

FAQ Your frequently asked questions about the CVO 1870 LIMITED FLHTKSE 2017

What is the power of the CVO 1870 LIMITED FLHTKSE 2017?
The CVO 1870 LIMITED FLHTKSE 2017 develops a power of 102 ch (100.60 hp)
What is the torque of the CVO 1870 LIMITED FLHTKSE 2017?
The maximum torque of the CVO 1870 LIMITED FLHTKSE 2017 is 16.80 mkg to 3,250 rpm.
What is the maximum speed of the CVO 1870 LIMITED FLHTKSE 2017?
The CVO 1870 LIMITED FLHTKSE 2017 is capable of reaching a top speed of approximately 170 km/h (105.60 mph) on the track.
What is the weight of the CVO 1870 LIMITED FLHTKSE 2017?
The CVO 1870 LIMITED FLHTKSE 2017 has a a dry weight of 414 kg (913 lb), a weight when fully loaded of 431 kg (950 lb).
What is the fuel consumption of the CVO 1870 LIMITED FLHTKSE 2017?
Average fuel consumption is estimated at 5.50 l/100km (0.43 mpg) according to the WMTC cycle.
QWhat is the seat height of the CVO 1870 LIMITED FLHTKSE 2017?
To ensure good accessibility, the CVO 1870 LIMITED FLHTKSE 2017 offers a minimum seat height of 760 mm (29.92 in).
What is the price of the CVO 1870 LIMITED FLHTKSE 2017?
The price of the CVO 1870 LIMITED FLHTKSE 2017 is 41,750€ in France
