Motorcycle specifications Harley-Davidson1870 ULTRA LIMITED LOW FLHTKL 2019 The other boarding pass

Touring
Photo of Harley-Davidson 1870 ULTRA LIMITED LOW FLHTKL 2019

presentation of the 1870 ULTRA LIMITED LOW FLHTKL 2019

The uLtra Limited Low was one of the first bikes in the range to receive the Milwaukee Eight engine. This twin quickly became a major feature of the Touring range, as the connecting rods were obviously feeling cramped for the manufacturer's larger vessels. The liquid-cooled version is housed in the Low range. For all that, the "cooled" will not be the main subject of discussion and road enjoyment. It's the big engine that will be chosen, and the tasting will take place with an increase in displacement: 1868 cm3 of torque, fatness and breath. With 4 valves and 2 spark plugs per cylinder, faster acceleration and 1.5 mkg more torque, yesterday's 1745 cm3 M8 was already leaving the venerable Twin Cam far behind. Now, it's up to 16.7 mkg - 1.2 more than the 107 version. This 114 spits out more watts than the mills of the former CVO 110 range. With its balancing arm, this block reduces idle vibrations by 75%... but retains all the charm and feel of an H-D engine. To find out more about the Milwaukee Eight engine, click here ->.

with this ninth-generation twin, Touring Harleys are feeling the wind in their sails. This chapter brings a few other improvements, less spectacular but just as appreciable on the road. The fork features Showa SDBW technology for enhanced performance and consistent damping. The rear amortos offer simplified preload adjustment. Once set, no further adjustment is required. Harley thus abandons a long history of penumatic combinations in favor of an emulsion system.

The previous improvements should not be overshadowed. Those of the Rushmore project, which enabled the Ultra Limited road vessel to gain in motorization, comfort and ride quality. A little was left over to create a LOW version. In other words, a Limited that's just as well equipped, but more ergonomic and, above all, more accessible. The main difference? A seat height reduced from 740 to 675 mm. But that's not all, as Harley has gone one step further in its quest to make life easier for riders of modest stature.

Harley-Davidson 1870 ULTRA LIMITED LOW FLHTKL 2019 - 1Harley-Davidson 1870 ULTRA LIMITED LOW FLHTKL 2019 - 1
Harley-Davidson 1870 ULTRA LIMITED LOW FLHTKL 2019 - 2Harley-Davidson 1870 ULTRA LIMITED LOW FLHTKL 2019 - 2Harley-Davidson 1870 ULTRA LIMITED LOW FLHTKL 2019 - 3Harley-Davidson 1870 ULTRA LIMITED LOW FLHTKL 2019 - 3Harley-Davidson 1870 ULTRA LIMITED LOW FLHTKL 2019 - 4Harley-Davidson 1870 ULTRA LIMITED LOW FLHTKL 2019 - 4Harley-Davidson 1870 ULTRA LIMITED LOW FLHTKL 2019 - 5Harley-Davidson 1870 ULTRA LIMITED LOW FLHTKL 2019 - 5Harley-Davidson 1870 ULTRA LIMITED LOW FLHTKL 2019 - 6Harley-Davidson 1870 ULTRA LIMITED LOW FLHTKL 2019 - 6

Harley-Davidson 1870 ULTRA LIMITED LOW FLHTKL 2019

In addition to the seat, the entire machine has been lowered, with suspensions lowered by 25 mm. The handlebars have been moved 5 cm closer to the rider. One might conclude that half a decimeter isn't much... You'll think of it when you need to change a light bulb on the ceiling and you're 5 cm short of reaching it. Then there are the little details that don't seem so at first glance, but which we appreciate on a daily basis: narrower transmission and clutch housings, smaller handlebars, a clutch that requires less effort, retractable passenger footrests and a modified kickstand for easier grabbing. The Low's windscreen has been slightly scaled down, the company following a simple equation: reduced height = reduced air depression = reduced turbulence.

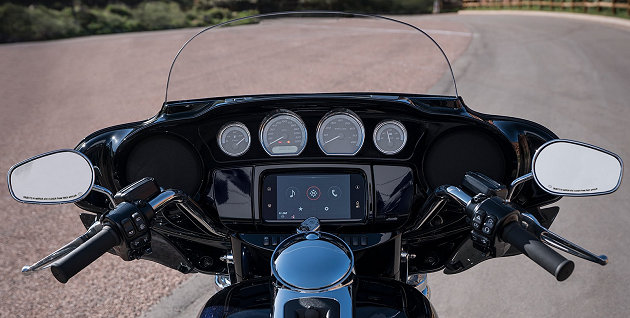

the Limited Low thus appeals to a clientele previously intimidated by such a liner, while benefiting from all the Rushmore improvements. To sum up: the American model is equipped with the new 114 twin; the new-generation BOOM! Box GTS multimedia station with large touchscreen, 100-watt sound system and GPS; a premium Tour-Pak and luggage set to carry your wife and belongings; Reflex combined braking; Daymaker LED headlights; and the practical One-touch opening system. The Limited also features HD-Smart touchless starting, a top-of-the-range finish with a choice of two-tone paint, revised suspension, cruise control, heated grips, and much more.
If the Limited loses altitude in this Low definition, the price doesn't follow the trend. A few hundred euros more are required. But they're anecdotal given the asking price for this ostentatious Touring.

M.B - Manufacturer's photos

Key facts Harley-Davidson 1870 ULTRA LIMITED LOW FLHTKL (2019) : What you need to know before you buy

Highlights

  • Huge engine with almost 17 mkg
  • Asssise basse
  • Long-distance comfort
  • Equipment

Weak points

  • Recipe
  • Poids

Prices

Basic version
flag FranceFrance
30,510€

Bikers' reviews

of 0 review

Model sold in 2019

Replace 1745 ULTRA LIMITED LOW FLHTKL 2018

Photo of {name} {year}
1745 ULTRA LIMITED LOW FLHTKL 2018

Performance

Specifications Harley-Davidson 1870 ULTRA LIMITED LOW FLHTKL 2019

Chassis
Frame : Double tubular steel cradle
Fuel capacity : 22.70 liters (6 US gallons)
Seat height : 675 mm (26.57 in)
Length : 2,600 mm (102.36 in)
Wheelbase : 1,625 mm (63.98 in)
Dry weight : 398 kg (877 lb)
Weight when fully loaded : 415 kg (915 lb)
Front axle
Telescopic fork Ø 49 mm
Braking 2 discs Ø 300 mm (11.81 in), 4-piston caliper
Front tire : 130 / 80 - 17 → Order this type of tire
Pressure : 2.48 bar
Transmission
6 stage gearbox
Secondary belt drive
Rear axle
2 lateral shock absorbers
Braking 1 disc Ø 300 mm (11.81 in), 4-piston caliper (fixed caliper)
Rear tire : 180 / 65 - 16 → Order this type of tire
Pressure : 2.76 bar
Motor
two-cylinder 45° V-shaped , 4 strokes
Injection
Cooling system : combined air/water
ACT, tumbled
4 valves per cylinder
1,868 cc
90 ch (88.80 hp) to 5,020 rpm
16.70 mkg to 3,000 rpm
Power-to-weight ratio : 4.48 kg/ch
Weight / torque ratio : 23.83 kg/mkg
Compression : 10.5 : 1
Standard equipment
Brake assist : ABS combined as standard
Practical information
Take care of your motorcycle! Find all the parts and maintenance products you need to keep your bike in top condition.
Motorcyle equipment adapted for all members of the family and security elements.

Gallery

Models

Compare the 1870 ULTRA LIMITED LOW FLHTKL to its competitors

Acceleration

Harley-Davidson 1870 ULTRA LIMITED LOW FLHTKL 2019 Undisclosed
BMW K 1600 Grand America 2019 : 3.2 s
Indian 1811 ROADMASTER 2019 Undisclosed
Honda GL 1800 GOLDWING Tour 2019 Undisclosed

Fuel consumption

Harley-Davidson 1870 ULTRA LIMITED LOW FLHTKL 2019 : 6.30 liters/100km (0.37 mpg)
BMW K 1600 Grand America 2019 : 5.70 liters/100km (0.41 mpg)
Indian 1811 ROADMASTER 2019 Undisclosed
Honda GL 1800 GOLDWING Tour 2019 : 5.60 liters/100km (0.42 mpg)

Range

Harley-Davidson 1870 ULTRA LIMITED LOW FLHTKL 2019 : 360 km (224 miles)
BMW K 1600 Grand America 2019 : 465 km (289 miles)
Indian 1811 ROADMASTER 2019 Undisclosed
Honda GL 1800 GOLDWING Tour 2019 : 377 km (234 miles)

Torque

Harley-Davidson 1870 ULTRA LIMITED LOW FLHTKL 2019 : 16.7 mkg
BMW K 1600 Grand America 2019 : 17.8 mkg
Indian 1811 ROADMASTER 2019 : 15.3 mkg
Honda GL 1800 GOLDWING Tour 2019 : 17.3 mkg

Power

Harley-Davidson 1870 ULTRA LIMITED LOW FLHTKL 2019 : 90 ch (88.80 hp)
BMW K 1600 Grand America 2019 : 160 ch (157.80 hp)
Indian 1811 ROADMASTER 2019 : 84 ch (82.80 hp)
Honda GL 1800 GOLDWING Tour 2019 : 126 ch (124.30 hp)

Power-to-Weight ratio

Harley-Davidson 1870 ULTRA LIMITED LOW FLHTKL 2019 : 4.48 kg/ch
BMW K 1600 Grand America 2019 : 2.17 kg/ch *
Indian 1811 ROADMASTER 2019 : 4.9 kg/ch
Honda GL 1800 GOLDWING Tour 2019 : 2.9 kg/ch *

Torque-to-Weight ratio

Harley-Davidson 1870 ULTRA LIMITED LOW FLHTKL 2019 : 23.83 kg/mkg
BMW K 1600 Grand America 2019 : 19.21 kg/mkg *
Indian 1811 ROADMASTER 2019 : 26.54 kg/mkg
Honda GL 1800 GOLDWING Tour 2019 : 20.87 kg/mkg *

Speed

Harley-Davidson 1870 ULTRA LIMITED LOW FLHTKL 2019 : approximately 170 km/h (105.60 mph)
BMW K 1600 Grand America 2019 : 162 km/h (100.70 mph)
Indian 1811 ROADMASTER 2019 : approximately 180 km/h (111.80 mph)
Honda GL 1800 GOLDWING Tour 2019 : 180 km/h (111.80 mph)

Bikers' reviews Leave a review

Leave your review about the Harley-Davidson 1870 ULTRA LIMITED LOW FLHTKL 2019
Follow the news

Fill up at MotoplaneteBe notified by email when a new entry is published in this category.

Your personal data is processed by the company that manages the Motoplanete site on the basis of your consent and is used to manage your alerts. To find out more and exercise your rights, please consult our personal data policy.

FAQ Your frequently asked questions about the 1870 ULTRA LIMITED LOW FLHTKL 2019

What is the power of the 1870 ULTRA LIMITED LOW FLHTKL 2019?
The 1870 ULTRA LIMITED LOW FLHTKL 2019 develops a power of 90 ch (88.80 hp)
What is the torque of the 1870 ULTRA LIMITED LOW FLHTKL 2019?
The maximum torque of the 1870 ULTRA LIMITED LOW FLHTKL 2019 is 16.70 mkg to 3,000 rpm.
What is the maximum speed of the 1870 ULTRA LIMITED LOW FLHTKL 2019?
The 1870 ULTRA LIMITED LOW FLHTKL 2019 is capable of reaching a top speed of approximately 170 km/h (105.60 mph) on the track.
What is the weight of the 1870 ULTRA LIMITED LOW FLHTKL 2019?
The 1870 ULTRA LIMITED LOW FLHTKL 2019 has a a dry weight of 398 kg (877 lb), a weight when fully loaded of 415 kg (915 lb).
What is the fuel consumption of the 1870 ULTRA LIMITED LOW FLHTKL 2019?
Average fuel consumption is estimated at 6.30 l/100km (0.37 mpg) according to the WMTC cycle.
QWhat is the seat height of the 1870 ULTRA LIMITED LOW FLHTKL 2019?
To ensure good accessibility, the 1870 ULTRA LIMITED LOW FLHTKL 2019 offers a minimum seat height of 675 mm (26.57 in).
What is the price of the 1870 ULTRA LIMITED LOW FLHTKL 2019?
The price of the 1870 ULTRA LIMITED LOW FLHTKL 2019 is 30,510€ in France
