Motorcycle specifications Harley-Davidson1870 Softail Fat Boy 30ème anniversaire FLFBS 2020 Dark candles

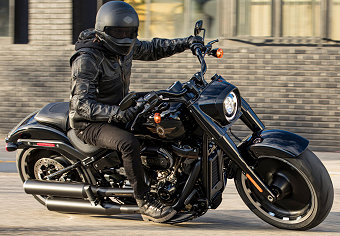

presentation of the 1870 Softail Fat Boy 30ème anniversaire FLFBS 2020
It's been three decades since the Fat Boy has been a staple of the Harley-Davidson range. Virtually elevated to iconic status, the custom bike earned some of its letters of nobility with a certain James Cameron film. With robots, Skynet, John Connor and all that... Harley being fond of celebrations, here comes a special 30th Anniversary edition for the Fat Boy.
born in a deep, dark livery, this big-bore bike is totally in keeping with the Dark Custom philosophy. Just about everything about it has been drenched in black. Exhausts, forks, headlamp cowling, engine, instrument panel, controls, faux-hard-tail frame, trim, mirrors... Almost everything, I tell you. But the company has reserved a few distinguished touches for the occasion. The solid rims take up their aluminum color in a thin perimeter on the edge of the tire. On the twin side, the cylinder heads receive a bronze coating on the rocker covers. The same color is used for the special logo on the sides of the fuel tank.
this enormous fuel bag, as much a "Fat" as the whole machine... Keep your eye on it for a moment. To appreciate the special gold-finish plate, the raised nameplate and the precious identification with the serial number.
A limited edition of 2,500 units. So we should be able to find a few of them on our territory. But the bulk will obviously be absorbed by Uncle Sam.
black Onyx, Vivid Black, Satin Black... Connoisseurs will appreciate the different shades of black on the Fat Boy 30th Anniversary. A fitting tribute to a model that can't be ignored.
M.B - manufacturer's photos
by Greg
Share
Key facts Harley-Davidson 1870 Softail Fat Boy 30ème anniversaire FLFBS (2020) : What you need to know before you buy
Prices
| Basic version | |
|---|---|
 France |
25,950€
|
Model sold in 2020
Replace 1870 SOFTAIL FAT BOY 115eme Anniversaire FLFBS 2018
Performance
- Max speed : approximately 170 km/h (105.60 mph)
- Average fuel consumption : 5.60 liters/100km (0.42 mpg)
-
Estimated range
: 338 km (210 miles)
Calculated range until tank is empty, not verified.
Specifications Harley-Davidson 1870 Softail Fat Boy 30ème anniversaire FLFBS 2020
- Chassis
- Frame : Double tubular steel cradle
- Fuel capacity : 18.90 liters (4.99 US gallons)
- Seat height : 675 mm (26.57 in)
- Length : 2,370 mm (93.31 in)
- Width : 972 mm (38.27 in)
- Min height : 1,107 mm (43.58 in)
- Wheelbase : 1,665 mm (65.55 in)
- Dry weight : 304 kg (670 lb)
- Weight when fully loaded : 317 kg (699 lb)
- Front axle
- Fourche telescopique Ø 41.3 mm, Wheel travel : 130 mm (5.12 in)
- Braking 1 disc Ø 300 mm (11.81 in), 4-piston caliper
- Front tire : 160 / 60 - 18 → Order this type of tire
- Transmission
- 6 stage gearbox
- Secondary belt drive
- Rear axle
- Under-seat monoshock, Wheel travel : 86 mm (3.39 in)
- Braking 1 disc Ø 292 mm (11.5 in), 2-piston caliper
- Rear tire : 240 / 40 - 18 → Order this type of tire
- Motor
- two-cylinder 45° V-shaped , 4 strokes
- Injection
- Cooling system : by air
- tumbled
- 4 valves per cylinder
- 1,868 cc
- 93 ch (91.70 hp) to 5,020 rpm
- 15.80 mkg to 3,000 rpm
- Power-to-weight ratio : 3.32 kg/ch
- Weight / torque ratio : 19.24 kg/mkg
- Compression : 10.5 : 1
- Standard equipment
- Brake assist : ABS de série
- Practical information
Maintenance
The shock pre-load adjuster mounting bracket may break, causing the shock adjuster to come into contact with the tyre. There is a risk of a sudden loss of air pressure and therefore an increased risk of accidents and injuries.
Information source du rappelGallery
Models
2020
Competitors
Compare the 1870 Softail Fat Boy 30ème anniversaire FLFBS to its competitors
Fuel consumption
Range
Torque
Power
Power-to-Weight ratio
Torque-to-Weight ratio
Speed
CO² emissions
FAQ Your frequently asked questions about the 1870 Softail Fat Boy 30ème anniversaire FLFBS 2020
- What is the power of the 1870 Softail Fat Boy 30ème anniversaire FLFBS 2020?
-
The 1870 Softail Fat Boy 30ème anniversaire FLFBS 2020 develops a power of 93 ch (91.70 hp)
- What is the torque of the 1870 Softail Fat Boy 30ème anniversaire FLFBS 2020?
-
The maximum torque of the 1870 Softail Fat Boy 30ème anniversaire FLFBS 2020 is 15.80 mkg to 3,000 rpm.
- What is the maximum speed of the 1870 Softail Fat Boy 30ème anniversaire FLFBS 2020?
-
The 1870 Softail Fat Boy 30ème anniversaire FLFBS 2020 is capable of reaching a top speed of approximately 170 km/h (105.60 mph) on the track.
- What is the weight of the 1870 Softail Fat Boy 30ème anniversaire FLFBS 2020?
-
The 1870 Softail Fat Boy 30ème anniversaire FLFBS 2020 has a a dry weight of 304 kg (670 lb), a weight when fully loaded of 317 kg (699 lb).
- What is the fuel consumption of the 1870 Softail Fat Boy 30ème anniversaire FLFBS 2020?
-
Average fuel consumption is estimated at 5.60 l/100km (0.42 mpg) according to the WMTC cycle.
- QWhat is the seat height of the 1870 Softail Fat Boy 30ème anniversaire FLFBS 2020?
-
To ensure good accessibility, the 1870 Softail Fat Boy 30ème anniversaire FLFBS 2020 offers a minimum seat height of 675 mm (26.57 in).
- What is the price of the 1870 Softail Fat Boy 30ème anniversaire FLFBS 2020?
-
The price of the 1870 Softail Fat Boy 30ème anniversaire FLFBS 2020 is 25,950€ in France
