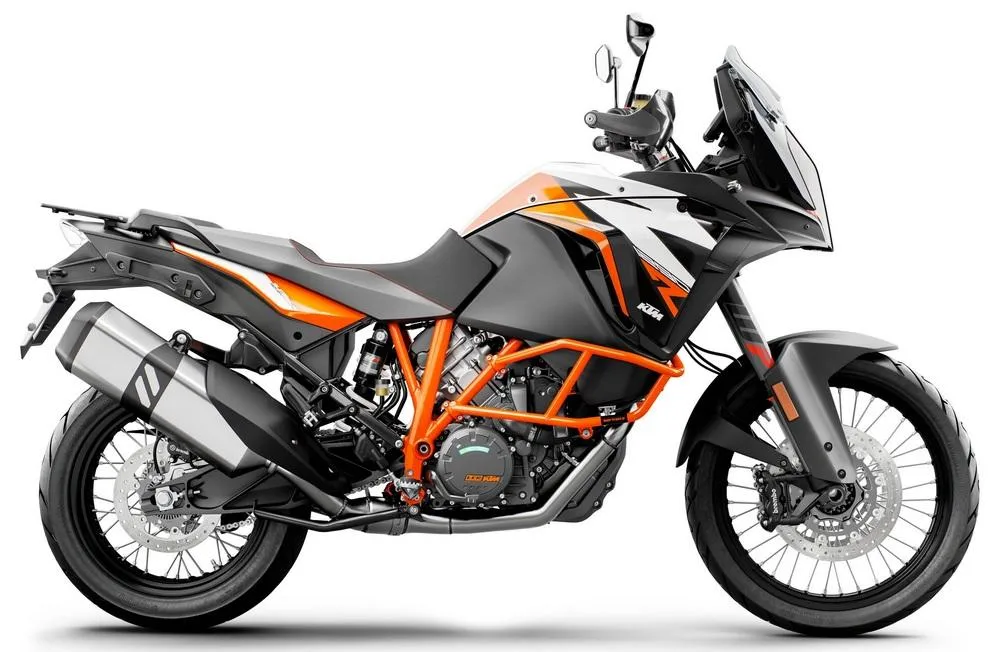

Technical motorcycle description KTM1290 Super Adventure R 2020
Specifications KTM 1290 Super Adventure R 2020
- Chassis
- Two-seater saddle
- Frame : tubular steel mesh
- Fuel capacity : 23 liters (6.08 US gallons)
- Oil capacity : 3.60 liters (0.95 US gallons)
- Seat height : 890 mm (35.04 in)
-
Min. ground clearance : 250 mm (9.84 in)
- Wheelbase : 1,580 mm (62.20 in)
- Dry weight : 217 kg (478 lb)
- Weight when fully loaded : 240 kg (529 lb)
- Front axle
- ø 48 mm inverted hydraulic fork, Wheel travel : 220 mm (8.66 in)
- Preload, compression and rebound adjustment
- Braking 2 Brembo discs Ø 320 mm (12.6 in), radial mounting, 4-piston caliper
- Front tire (Tubeless) : 90 / 90 - 21 → Order this type of tire
- Transmission
- 6 stage gearbox , manual
- Secondary by chain
- Rear axle
- Monoshock, Wheel travel : 220 mm (8.66 in)
- Preload, compression and rebound adjustment
- Braking 1 Brembo disc Ø 267 mm (10.51 in), 2-piston caliper
- Rear tire (Tubeless) : 150 / 70 - 18 → Order this type of tire
- Motor
- two-cylinder 75° V-shaped , 4 strokes
- Injection Ø 52 mm
- Cooling system : liquid
- 2 ACT
- 4 valves per cylinder
- 1,301 cc
- 160 ch (157.80 hp) to 8,750 rpm
- 14.30 mkg (140 Nm) to 6,700 rpm
- Power-to-weight ratio : 1.38 kg/ch
- Weight / torque ratio : 15.17 kg/mkg
- Compression : 13.1 : 1
- Starting system : electric
- Standard equipment
- Brake assist : ABS cornering can be disabled
- Number of riding modes : 4
- TFT Full-Colour screen size: 16.51 cm (6.5 inches)
- Cruise control
- Spoke wheels
- ABS Cornering
- Traction control
- Tire pressure monitoring system
- Crash Bars / Top Blocks
- Keyless ignition
- Adaptive headlights
- ABS disconnectable
- Combined braking
- Anti-slip clutch
- Adjustable footrests
- Center stand
- Optional equipment
- Shifter
- Hill Hold Control
- Heated grips
- Practical information
- Country of manufacture : Austria
Despite the switch to Euro4 standards, the 1290 Super Adventure's big twin has lost none of its firepower, still developing 160hp and 140nm. Still equipped with Ride by wire, traction control, cruise control and combined inertial ABS, the Super Adventure is available this year in three distinct versions: T, S and R.
The R version is unquestionably the most adventurous of the lot. With the same front end as the S, it features large 18" and 21" spoked wheels, an inverted fork with long travel (220mm) in place of the semi-active suspension, a short bubble for improved visibility, and a large tubular rear hugger.
The dry weight is 217kg, compared with 215kg for the S version. It will also be equipped with a watertight pocket with USB port (useful for safely recharging your cell phone), a large color display, a protected, illuminated instrument panel and cruise control.
Gallery
FranceModels
2020
2019
2018
2017
Compare the 1290 Super Adventure R to its competitors
Acceleration
Fuel consumption
Range
Torque
Power
Power-to-Weight ratio
Torque-to-Weight ratio
Speed
CO² emissions
FAQ Your frequently asked questions about the 1290 Super Adventure R 2020
- What is the power of the 1290 Super Adventure R 2020?
-
The 1290 Super Adventure R 2020 develops a power of 160 ch (157.80 hp)
- What is the torque of the 1290 Super Adventure R 2020?
-
The maximum torque of the 1290 Super Adventure R 2020 is 14.30 mkg (140 Nm) to 6,700 rpm.
- What is the maximum speed of the 1290 Super Adventure R 2020?
-
The 1290 Super Adventure R 2020 is capable of reaching a top speed of over 250 km/h (155.30 mph) on the track.
- What is the weight of the 1290 Super Adventure R 2020?
-
The 1290 Super Adventure R 2020 has a a dry weight of 217 kg (478 lb), a weight when fully loaded of 240 kg (529 lb).
- QWhat is the seat height of the 1290 Super Adventure R 2020?
-
To ensure good accessibility, the 1290 Super Adventure R 2020 offers a minimum seat height of 890 mm (35.04 in).
- What is the price of the 1290 Super Adventure R 2020?
-
The price of the 1290 Super Adventure R 2020 is 18,499€ in France
- What colors are available for the 1290 Super Adventure R 2020?
-
For the 2020 model year, the 1290 Super Adventure R is available in one color: orange / black.
