Motorcycle specifications Harley-Davidson1746 ULTRA LIMITED LOW FLHTKL 2017 The other boarding pass

Touring

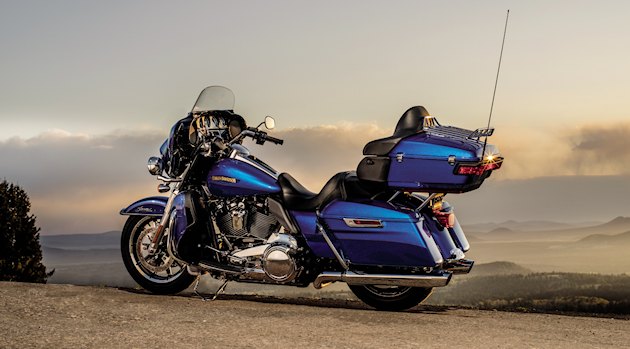

Photo of Harley-Davidson 1746 ULTRA LIMITED LOW FLHTKL 2017

presentation of the 1746 ULTRA LIMITED LOW FLHTKL 2017

The uLtra Limited Low is one of the first bikes in the range to receive the all-new Milwaukee Eight engine. While the entire Touring range benefits from this for 2017, not all models are supplied with the same opus. For the Low, it will be the liquid-cooled version. For all that, the "cooled" engine won't be the main topic of discussion and road enjoyment. On the engine side, the tasting will take place with this new displacement: 1746 cm3 of torque, fatness and breath. With 4 valves and 2 spark plugs per cylinder, faster acceleration and 1.5 mkg more torque, the Harley M8 leaves the venerable Twin Cam far behind. Consider that its maximum torque reaches 15.5 mkg on the Limited Low; the previous version claimed "only" 14 mkg. This 107 spits out almost as much power as the mills of the former CVO 110 range. With its balancing arm, this block is said to reduce idle vibrations by 75%... but retains all the charm and feel of an H-D engine. To find out more about the Milwaukee Eight engine, click here ->.

with this ninth-generation twin, Touring Harleys are feeling the wind in their sails. The 2017 vintage brings a few other improvements, less spectacular but just as appreciable on the road. The fork features Showa SDBW technology for enhanced performance and consistent damping. The rear amortos offer simplified preload adjustment. Once set, no further adjustment is required. Harley thus abandons a long history of penumatic combinations in favor of an emulsion system.

The previous improvements should not be overshadowed. Those of the Rushmore project, which enabled the Ultra Limited road vessel to gain in motorization, comfort and ride quality. A little was left over to create a LOW version. In other words, a Limited that's just as well equipped, but more ergonomic and, above all, more accessible. The main difference? A seat height reduced from 740 to 685 mm. But that's not all, as Harley has gone one step further in its quest to make life easier for riders of modest stature.

Harley-Davidson 1746 ULTRA LIMITED LOW FLHTKL 2017 - 1Harley-Davidson 1746 ULTRA LIMITED LOW FLHTKL 2017 - 1
Harley-Davidson 1746 ULTRA LIMITED LOW FLHTKL 2017 - 2Harley-Davidson 1746 ULTRA LIMITED LOW FLHTKL 2017 - 2Harley-Davidson 1746 ULTRA LIMITED LOW FLHTKL 2017 - 3Harley-Davidson 1746 ULTRA LIMITED LOW FLHTKL 2017 - 3Harley-Davidson 1746 ULTRA LIMITED LOW FLHTKL 2017 - 4Harley-Davidson 1746 ULTRA LIMITED LOW FLHTKL 2017 - 4Harley-Davidson 1746 ULTRA LIMITED LOW FLHTKL 2017 - 5Harley-Davidson 1746 ULTRA LIMITED LOW FLHTKL 2017 - 5Harley-Davidson 1746 ULTRA LIMITED LOW FLHTKL 2017 - 6Harley-Davidson 1746 ULTRA LIMITED LOW FLHTKL 2017 - 6

Harley-Davidson 1746 ULTRA LIMITED LOW FLHTKL 2017

In addition to the seat, the entire machine has been lowered, with suspensions lowered by 25 mm. The handlebars have been moved 5 cm closer to the rider. One might conclude that half a decimeter isn't much... You'll think of it when you need to change a light bulb on the ceiling and you're 5 cm short of reaching it. Then there are the little details that don't seem so at first glance, but which we appreciate on a daily basis: narrower transmission and clutch housings, smaller handlebars, a clutch that requires less effort, retractable passenger footrests and a modified kickstand for easier grabbing. The Low's windscreen has been slightly scaled down, the company following a simple equation: reduced height = reduced air depression = reduced turbulence.

the Limited Low thus appeals to a clientele previously intimidated by such a liner, while benefiting from all the Rushmore improvements. To sum up: the American model is equipped with the all-new 107 ci twin, the BOOM! Box 6.5 GT multimedia station with large touchscreen, 100-watt sound system and GPS; a premium Tour-Pak and luggage kit to carry your wife and belongings; Reflex combined braking; Daymaker LED headlights; and the practical One-touch opening system. The Limited also features HD-Smart touchless starting, a top-of-the-range finish with a choice of two-tone paint, revised suspension, cruise control, heated grips, and much more.
If the Limited loses altitude in this Low definition, the price doesn't follow the trend. A few hundred euros more are required. But they're anecdotal given the asking price for this ostentatious Touring.

M.B - Manufacturer's photos

Key facts Harley-Davidson 1746 ULTRA LIMITED LOW FLHTKL (2017) : What you need to know before you buy

Highlights

  • New M8 motor
  • Asssise basse
  • Long-distance comfort
  • Equipment

Weak points

  • Recipe
  • Poids

Prices

Basic version
flag FranceFrance
29,990€

Bikers' reviews

of 1 reviews

Model sold in 2017 2018

Replace 1690 ULTRA LIMITED LOW FLHTKL 2016

Photo of {name} {year}
1690 ULTRA LIMITED LOW FLHTKL 2016

Performance

Specifications Harley-Davidson 1746 ULTRA LIMITED LOW FLHTKL 2017

Chassis
Frame : Double tubular steel cradle
Fuel capacity : 22.70 liters (6 US gallons)
Seat height : 685 mm (26.97 in)
Length : 2,600 mm (102.36 in)
Wheelbase : 1,625 mm (63.98 in)
Dry weight : 398 kg (877 lb)
Weight when fully loaded : 414 kg (913 lb)
Front axle
Telescopic fork Ø 49 mm
Braking 2 discs Ø 300 mm (11.81 in), 4-piston caliper
Front tire : 130 / 80 - 17 → Order this type of tire
Pressure : 2.48 bar
Transmission
6 stage gearbox
Secondary belt drive
Rear axle
2 lateral shock absorbers
Braking 1 disc Ø 300 mm (11.81 in), 4-piston caliper (fixed caliper)
Rear tire : 180 / 65 - 16 → Order this type of tire
Pressure : 2.76 bar
Motor
two-cylinder 45° V-shaped , 4 strokes
Injection
Cooling system : combined air/water
ACT, tumbled
4 valves per cylinder
1,746 cc
91 ch (89.70 hp) to 5,450 rpm
15.50 mkg to 3,250 rpm
Power-to-weight ratio : 4.44 kg/ch
Weight / torque ratio : 25.68 kg/mkg
Compression : 10 : 1
Standard equipment
Brake assist : ABS combined as standard
Practical information
Take care of your motorcycle! Find all the parts and maintenance products you need to keep your bike in top condition.
Motorcyle equipment adapted for all members of the family and security elements.

Gallery

Compare the 1746 ULTRA LIMITED LOW FLHTKL to its competitors

Fuel consumption

Harley-Davidson 1746 ULTRA LIMITED LOW FLHTKL 2017 : 5.50 liters/100km (0.43 mpg)
Indian 1811 ROADMASTER 2017 Undisclosed

Range

Harley-Davidson 1746 ULTRA LIMITED LOW FLHTKL 2017 : 413 km (257 miles)
Indian 1811 ROADMASTER 2017 Undisclosed

Torque

Harley-Davidson 1746 ULTRA LIMITED LOW FLHTKL 2017 : 15.5 mkg
Indian 1811 ROADMASTER 2017 : 14.1 mkg

Power

Harley-Davidson 1746 ULTRA LIMITED LOW FLHTKL 2017 : 91 ch (89.70 hp)
Indian 1811 ROADMASTER 2017 : 74 ch (73 hp)

Power-to-Weight ratio

Harley-Davidson 1746 ULTRA LIMITED LOW FLHTKL 2017 : 4.44 kg/ch
Indian 1811 ROADMASTER 2017 : 5.56 kg/ch

Torque-to-Weight ratio

Harley-Davidson 1746 ULTRA LIMITED LOW FLHTKL 2017 : 25.68 kg/mkg
Indian 1811 ROADMASTER 2017 : 28.79 kg/mkg

Speed

Harley-Davidson 1746 ULTRA LIMITED LOW FLHTKL 2017 : approximately 170 km/h (105.60 mph)
Indian 1811 ROADMASTER 2017 : approximately 180 km/h (111.80 mph)

Bikers' reviews Leave a review - 1 review

French Model 2017
I've been lucky enough to own this bike since February 15, and I've already done 13,000 kms on it. It's really a very good bike, I had a 1450 Electra before that I kept for 10 years, and I was extremely satisfied with it, but there's no comparison here, nothing compares, handling, braking, engine, and I hope it'll be as reliable as the old one. Rating : 5/5
Leave your review about the Harley-Davidson 1746 ULTRA LIMITED LOW FLHTKL 2017
Follow the news

Fill up at MotoplaneteBe notified by email when a new entry is published in this category.

Your personal data is processed by the company that manages the Motoplanete site on the basis of your consent and is used to manage your alerts. To find out more and exercise your rights, please consult our personal data policy.

FAQ Your frequently asked questions about the 1746 ULTRA LIMITED LOW FLHTKL 2017

What is the power of the 1746 ULTRA LIMITED LOW FLHTKL 2017?
The 1746 ULTRA LIMITED LOW FLHTKL 2017 develops a power of 91 ch (89.70 hp)
What is the torque of the 1746 ULTRA LIMITED LOW FLHTKL 2017?
The maximum torque of the 1746 ULTRA LIMITED LOW FLHTKL 2017 is 15.50 mkg to 3,250 rpm.
What is the maximum speed of the 1746 ULTRA LIMITED LOW FLHTKL 2017?
The 1746 ULTRA LIMITED LOW FLHTKL 2017 is capable of reaching a top speed of approximately 170 km/h (105.60 mph) on the track.
What is the weight of the 1746 ULTRA LIMITED LOW FLHTKL 2017?
The 1746 ULTRA LIMITED LOW FLHTKL 2017 has a a dry weight of 398 kg (877 lb), a weight when fully loaded of 414 kg (913 lb).
What is the fuel consumption of the 1746 ULTRA LIMITED LOW FLHTKL 2017?
Average fuel consumption is estimated at 5.50 l/100km (0.43 mpg) according to the WMTC cycle.
QWhat is the seat height of the 1746 ULTRA LIMITED LOW FLHTKL 2017?
To ensure good accessibility, the 1746 ULTRA LIMITED LOW FLHTKL 2017 offers a minimum seat height of 685 mm (26.97 in).
What is the price of the 1746 ULTRA LIMITED LOW FLHTKL 2017?
The price of the 1746 ULTRA LIMITED LOW FLHTKL 2017 is 29,990€ in France
