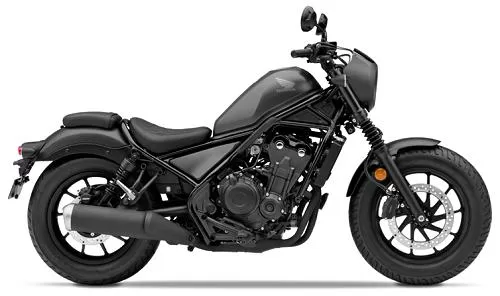

presentation of the CMX 500 Rebel S 2020
At once youthful, accessible and yet with a "Bad" counterpart, the 500 Rebel grumbles in its S version. These are just a few accessories added to its spine, but they're enough to give it a darker personality. It smells dark, of street ooze and crooked boots.
Freshly redesigned, the CMX 500 is now available in two versions. The standard, to discover Honda's only custom bike (in France), and the S, equipped with a striking embossed seat with topstitching, fork gussets and a smoked windscreen.
That's all, and that's all it needs. The Rebel is defined as a bobber. To overload it would be antithetical. The appearance is threatening, while the bike is more amiable in its functions. Adapted for Euro5, it has taken the opportunity to revise its suspension and clutch for greater comfort.
The big 130mm front tire is still there to provoke debate, before splitting the shadows with its multi-lens optics. Cleaner, the twin produces 45.5 hp and a gentle 4.6 mkg. Not violent, but just right for A2s. And it weighs just 191 kilos to tow.
With its sibling, the CMX 500 Rebel S will be able to continue its battles with the 650 Vulcan and 883 Iron. Piston strokes are allowed.
M.B - Manufacturer's media
Key facts Honda CMX 500 Rebel S (2020) : What you need to know before you buy
Highlights
- A gavroche face
- LE custom A2
Weak points
- Pas de pot bad trap ou full crack
Prices
| Basic version | |
|---|---|
|
6,999€
|
Performance
- Max speed : approximately 170 km/h (105.60 mph)
- Average fuel consumption : 3.70 liters/100km (0.64 mpg)
-
Estimated range
: 297 km (185 miles)
Calculated range until tank is empty, not verified.
Specifications Honda CMX 500 Rebel S 2020
- Chassis
- Frame : Tubular steel frame
- Fuel capacity : 11 liters (2.91 US gallons)
- Seat height : 690 mm (27.17 in)
- Length : 2,205 mm (86.81 in)
- Width : 820 mm (32.28 in)
- Min height : 1,090 mm (42.91 in)
- Wheelbase : 1,490 mm (58.66 in)
- Weight when fully loaded : 191 kg (421 lb)
- Front axle
- Telescopic fork Ø 41 mm, Wheel travel : 100 mm (3.94 in)
- Braking 1 disc Ø 296 mm (11.65 in), 2-piston caliper
- Front tire : 130 / 90 - 16 → Order this type of tire
- Pressure : 2 bar
- Transmission
- 6 stage gearbox
- Secondary by chain
- Rear axle
- 2 lateral shock absorbers, Wheel travel : 76 mm (2.99 in)
- Braking 1 disc Ø 240 mm (9.45 in), single-piston caliper
- Rear tire : 150 / 80 - 16 → Order this type of tire
- Pressure : 2 bar
- Motor
- two-cylinder online , 4 strokes
- Injection
- Cooling system : liquid
- 2 ACT
- 4 valves per cylinder
- 471 cc
- 45 ch (44.40 hp) to 8,500 rpm
- 4.60 mkg to 6,000 rpm
- Power-to-weight ratio : approximately 4.07 kg/ch
- Weight / torque ratio : approximately 39.28 kg/mkg
- Compression : 10.7 : 1
- Standard equipment
- Brake assist : ABS as standard
- Practical information
Gallery
Used
Competitors
Compare the CMX 500 Rebel S to its competitors
Fuel consumption
Range
Torque
Power
Power-to-Weight ratio
Torque-to-Weight ratio
Speed
FAQ Your frequently asked questions about the CMX 500 Rebel S 2020
- What is the power of the CMX 500 Rebel S 2020?
-
The CMX 500 Rebel S 2020 develops a power of 45 ch (44.40 hp)
- What is the torque of the CMX 500 Rebel S 2020?
-
The maximum torque of the CMX 500 Rebel S 2020 is 4.60 mkg to 6,000 rpm.
- What is the maximum speed of the CMX 500 Rebel S 2020?
-
The CMX 500 Rebel S 2020 is capable of reaching a top speed of approximately 170 km/h (105.60 mph) on the track.
- What is the weight of the CMX 500 Rebel S 2020?
-
The CMX 500 Rebel S 2020 has a a weight when fully loaded of 191 kg (421 lb).
- What is the fuel consumption of the CMX 500 Rebel S 2020?
-
Average fuel consumption is estimated at 3.70 l/100km (0.64 mpg) according to the WMTC cycle.
- QWhat is the seat height of the CMX 500 Rebel S 2020?
-
To ensure good accessibility, the CMX 500 Rebel S 2020 offers a minimum seat height of 690 mm (27.17 in).
- What is the price of the CMX 500 Rebel S 2020?
-
The price of the CMX 500 Rebel S 2020 is 6,999€ in France
