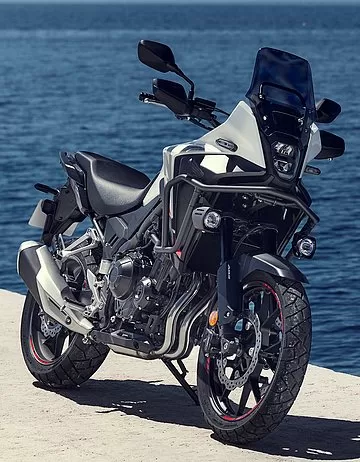

Motorcycle specifications Honda NX 500 2026 A small change of initial
presentation of the NX 500 2026
Make no mistake about it: the Honda NX 500 is n'y more n'y less than the well-known CB 500 X! It could have followed the same pattern of evolution, with the addition here and there of small modifications that would have done it a world of good, but nay. The little CB 500 X has become the NX 500. Two letters that in no way change its destination: the NX 500 remains true to itself, being a favorite machine for newcomers to motorcycling, and for those aiming for a reasonable, pragmatic purchase.
the two letters refer to a reminiscence of the brand's glorious past: the Honda NX 650. It had its moment of glory in 1988, with two pots under the seat, an RVFC cylinder head and a trail bike look. Perfectly in tune with the barbarian name we once knew: the Dominator ! Last but not least, the NX 125 Transcity and NX 250 are solid, sturdy machines.

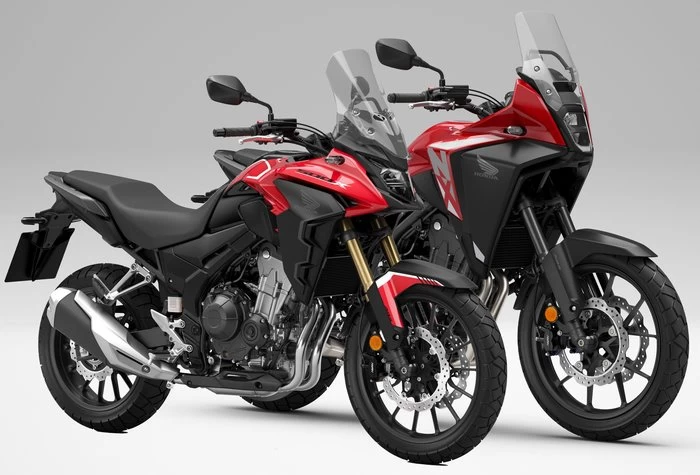

A quick flashback to the CB 500 X: launched in 2013, at the same time as the sporty CBR 500 R and the CB 500 F roadster, the CB500X trail bike brought a breath of adventure... or even SUV. In 2016, the CB 500 X evolved for the first time, benefiting from a larger fuel tank and better protection thanks to a higher bubble. In 2019, it saw a deeper styling evolution with more engine performance and a small list of modifications to the chassis. Finally, in 2022, the CB 500 X offers a ø 41 mm Showa SFF-BP fork and a lightened swingarm, a double front disc and a redesigned front rim.
Abracadabra, here comes the new NX500. The two letters stand for "New X-over", in keeping with the customary modern language. The entire front end has been redesigned in a more rally-raid, streamlined style. The facelift is significant enough to give the impression of a new motorcycle. A very straight face and shoulders unequivocally evoke adventure at the end of the muzzle, while everything else comes from the CB 500 X of yesterday. The mechanical base remains the same: a 471 cm3 twin-cylinder engine delivering maximum power of 35 kW (47.5 hp) at 8,600 rpm and torque of 43 Nm (4.38 mkg) at 6,500 rpm. This makes it A2-compatible. With its reasonable power output, the NX 500 offers few driving aids other than the famous HSTC torque control, which comes as standard. This compares the speed difference between the front and rear wheels to detect any loss of grip. There's also a slipper clutch for easier gear changes.
The seat height remains unchanged at 830 mm, but the narrow seat makes it easier to place your feet on the ground. The fuel tank retains its 17.5-liter capacity, ensuring a comfortable grip. Comfort-wise, it now features a 5-inch TFT display, borrowed from the XL 750 Transalp, and a new LED headlight optic. The backlit left-hand instrument panel features three instrumentation modes: bar, circular or simple. Connected via Bluetooth and a smartphone app, the instrument cluster lets you make phone calls or listen to music.
Finally, the NX 500 comes with a number of option packs: Adventure, Travel, Urban and Comfort.
- Adventure Pack
Mounted on a black tubular guard that protects the machine, two fog lamps enhance visibility. Hand guards keep debris out and limit the effects of cold, while a tinted windscreen and rim decals add to the style. A fuel tank protector is also included.
- Travel Pack
A set of semi-rigid 16.5-liter side panniers with quick-release fasteners and rack is combined with a 22-liter saddlebag.
- Urban Pack
A 38 l top-case with backrest and inner bag. A center stand, always appreciated for maintenance, completes the package.
- Comfort Pack
A pair of heated handgrips whose power (5 levels) is memorized and displayed on the TFT screen. Additional deflectors keep airflow away from the lower body, and a 12V socket under the seat provides a welcome charging point, while a 3-liter tank bag with transparent pocket and rain cover provides easy access to useful items.
Michaël Levivier - Manufacturer's photos
by Greg
Greg is the founder of Motoplanete—a website created in 2001 to share his passion with his friends and showcase as many motorcycle models as possible to his readers. Self-taught and a jack-of-all-trades, his discovery of the world of motorcycles led him to work as a photographer, rider, team manager, web developer, graphic designer, editorial assistant, and editor-in-chief.
Share
Key facts Honda NX 500 (2026) : What you need to know before you buy
Highlights
- Always valiant
- A few kilograms lighter
- 5-inch TFT display and backlit keypad
Weak points
- Change of name for the same machine
- No center stand
Prices
| Basic version | with E-Clutch | |
|---|---|---|
 France |
6,799€
|
7,299€
|
Performance
- Max speed : approximately 170 km/h (105.60 mph)
- Average fuel consumption : 3.60 liters/100km (0.65 mpg)
-
Estimated range
: 486 km (302 miles)
Calculated range until tank is empty, not verified.
Specifications Honda NX 500 2026
- Chassis
- Two-seater saddle
- Frame : in Diamond steel
- Fuel capacity : 17.50 liters (4.62 US gallons)
- Oil capacity : 3.20 liters (0.85 US gallons)
- Seat height : 830 mm (32.68 in)
- Length : 2,165 mm (85.24 in)
- Width : 830 mm (32.68 in)
- Min height : 1,415 mm (55.71 in)
-
Min. ground clearance : 180 mm (7.09 in)
- Wheelbase : 1,445 mm (56.89 in)
- Weight when fully loaded : 196 kg (432 lb)
- Front axle
- Reverse telehydraulic fork Ø 41 mm / Showa, Wheel travel : 150 mm (5.91 in)
- Angle de chasse : 27.5 °
- Preload adjustment
- Braking 2 Nissin discs Ø 296 mm (11.65 in), 2-piston caliper
- Front tire : 110 / 80 - 19 → Order this type of tire
- Pressure : 2.5 bar
- Transmission
- 6 stage gearbox , manual
- Secondary by chain
- Rear axle
- Mono-damper / Showa, Wheel travel : 135 mm (5.31 in)
- Preload adjustment
- Braking 1 Nissin disc Ø 240 mm (9.45 in), single-piston caliper
- Rear tire : 160 / 60 - 17 → Order this type of tire
- Pressure : 2.9 bar
- Motor
- two-cylinder online , 4 strokes, set at 180°
- Injection Ø 34 mm
- Cooling system : liquid
- 2 ACT
- 4 valves per cylinder
- 471 cc
- 48 ch (47.30 hp) to 8,600 rpm
- 4.50 mkg to 6,500 rpm
- Power-to-weight ratio : approximately 3.82 kg/ch
- Weight / torque ratio : approximately 40.18 kg/mkg
- Compression : 10.7 : 1
- Starting system : electric
- CO² emissions: 82 g/km
- Anti-pollution standard : Euro 5+
- Standard equipment
- Brake assist : ABS de série
- TFT Full-Colour screen size: 12.70 cm (5 inches)
- Aluminium rims
- Gear indicator
- Torque control
- Anti-slip clutch
- Optional equipment
- automated clutch
- Practical information
Essentials
Motoblouz
LaBécanerie
Gallery
Models
2026
2025
2024
Used
Find this used NX 500 on MotoPlanete
Compare the NX 500 to its competitors
Acceleration
Fuel consumption
Range
Torque
Power
Power-to-Weight ratio
Torque-to-Weight ratio
Speed
CO² emissions
FAQ Your frequently asked questions about the NX 500 2026
- What is the power of the NX 500?
-
The NX 500 2026 develops a power of 48 ch (47.30 hp)
- What is the torque of the NX 500?
-
The maximum torque of the NX 500 2026 is 4.50 mkg to 6,500 rpm.
- What is the maximum speed of the NX 500?
-
The NX 500 2026 is capable of reaching a top speed of approximately 170 km/h (105.60 mph) on the track.
- What is the weight of the NX 500?
-
The NX 500 2026 has a a weight when fully loaded of 196 kg (432 lb).
- What is the fuel consumption of the NX 500?
-
Average fuel consumption is estimated at 3.60 l/100km (0.65 mpg) according to the WMTC cycle.
- QWhat is the seat height of the NX 500?
-
To ensure good accessibility, the NX 500 2026 offers a minimum seat height of 830 mm (32.68 in).
- What is the price of the NX 500?
-
The price of the NX 500 2026 is 6,799€ in France. It is displayed at 7,299€ in France with E-Clutch.
- What size tires should I put on my NX 500?
-
The standard size for a NX 500 2026 is 110 / 80 - 19 for the front, and 160 / 60 - 17 for the rear.
- What colors are available for the NX 500?
-
For the 2026 model year, the NX 500 is available in several colors: black, white and black / blue.
- Where can I find high-quality used NX 500s?
-
You can find used NX 500 at great prices on MotoPlanete, in the section dedicated to them—models from professionals and private sellers, as well as spare parts.
